On Friday 4th March 2016, the UK government published an interesting report on ‘Smart Power’ which is relevant to the eCook proposition. This was a review where the the (UK) National Infrastructure Commission was asked to consider how the UK can better balance supply and demand, aiming towards an electricity market where prices are reflective of costs to the overall system. Its findings basically support the idea that adding lots of storage into the system can load smooth the grid – something I felt was important and wrote a paper on how it could be done with eCook.
‘Smart power’ makes practical recommendations to improving the electricity market of UK – not new subsidies or substantial public spending but three key recommendations. One of the three key recommendations is “to encourage network owners to use storage.” The Smart power report found that the flexible smart power system recommended by the National Infrastructure Commission could result in savings of up to £8.1 billion a year by 2030.
The strategic use of storage could create an operational flexibility that would “significantly reduce the integration cost of intermittent renewables, to the point where their whole-system cost makes them a more attractive expansion”. Increasing flexibility was found to be “low-regret option”, reducing the overall cost while maintaining security of supply requirements.
Why is storage a key to unlocking the UK grid? Storage allows consumers and suppliers to take energy and store it so that it can be used when it is most needed. In the UK electricity prices vary throughout the day, and across the year. When demand is higher, prices rise. Storage technology allows consumers to buy electricity when it is cheap and use it later when it is needed. There are a number of ways electricity can be stored. Today, the UKs main source of storage is through pumped hydro – simply converting electric energy into potential energy and back by moving water up and down a hill. There is, however, an increasing range of alternative ways to store energy including; chemical batteries, compressed air and supercapacitors.
Electricity has historically been difficult and expensive to store. However, over the last decade there has been a great deal of innovation in electricity storage technologies driven mostly by consumer electronics like mobile phones and investment in electric vehicles. This rapidly evolving environment has driven innovation and reduced costs. For example, the cost of lithium ion batteries has decreased from more than $3,000/kWh in 1990 to less than $200/ kWh today (as discussed in a previous blog). These technologies are now on the verge of being able to compete with power stations for some of the services they provide. Crucially, storage technology will not need subsidies to be attractive to investors – businesses are already queuing up to invest.
They are talking a lot of batteries here. The report gives two examples. The ‘Kilroot Advancion® Energy Storage Array’ is based in Carrickfergus in Northern Ireland and offers 10 MW of interconnected energy storage, equivalent to 20 MW flexible resource. This storage – which is comprised of over 53,000 batteries – is able to respond to changes in the grid in less than a second, providing a very fast response ancillary service to help balance the electricity system at times of high demand. The array is a fully commercial project, with no additional costs for consumers. The ‘Big Battery’ in Leighton Buzzard scheme features a 6MW/10MWh storage solution comprising approximately 50,000 lithium ion batteries, which has enabled UK Power Networks to manage electricity demand at peak times without building excess capacity.

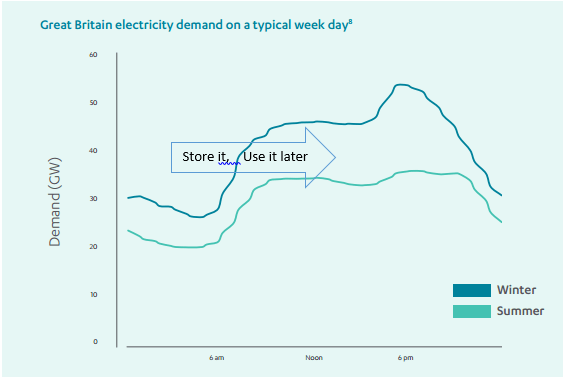

It is the idea that storage unlocks some of the generating potential of the middle of the night that may prove attractive. With the right policy environment, battery costs could enable municipalities to mitigate power outages, and shave off peak loading. This would give everyone a better experience with their electricity supply, enable more renewables to be in the system, and according to the report, this could be done at no additional cost to the consumers. Most grid profiles are similar to the one above for the UK. There is low use in the middle of the night, increasing during the day, and with a peak demand in the early evening as lights, televisions and cooking come on. This is true even for sub Saharan Africa as the daily load curves for Kenya illustrates. Using and storing that ‘middle of the night’ energy could improve consumers experience without creating new generating capacity.
Ref for graphic ENERGY EFFICIENCY FROM THE KENYA POWER PERSPECTIVE Margaret Kanini 2013
The eCook proposition adds that storage but just in a decentralized way. 53,000 households? – that is a relatively easy target. I take encouragement from this report – our proposed additional but transformative strategy for getting modern energy to resource poor households in Africa has considerable resonance with the absolute latest thinking in Europe. Big tick for us.
